Common Problems

This section describes some common problems and known issues currently present in the DMS platform, and suggestions on how to troubleshoot and/or work around them.

DMS not running on Apple Silicon

Our software is currently only compatible with Intel-based Macs, not Apple Silicon devices. We are actively working on updates to support Apple silicon. Thank you for your understanding.

Arranger UI URL Inconsistency

Problem:

When accessing the Arranger UI, the URL that must be entered requires a trailing slash \ in the final sub-path (e.g. \arranger-ui\), otherwise an HTTP 404 Not Found error is encountered and the URL cannot be resolved.

This is inconsistent from other services, where a trailing slash is NOT required (e.g. \ego-ui).

Cause:

This is a known issue to be addressed in a future DMS release.

Solution:

Currently, the trailing slash must be added to the URL to access the Arranger UI.

Docker Daemon Error When Running DMS Installer

Problem:

When trying to run the DMS installer, a Docker Daemon error may occur, indicating a failure to attach to the network. The DMS crashes and exits:

shell

Copy

$ dms -h

Status: Downloaded newer image for overture/dms:0.12.1
docker: Error response from daemon: attaching to network failed, make sure your network options are correct and check manager logs: context deadline exceeded.

sudo groupadd docker sudo usermod -aG docker $USER sudo reboot curl https://raw.githubusercontent.com/overture-stack/dms/0.15.1/src/main/bin/dms-docker > dms chmod +x dms docker swarm init dms -h Got the error: Status: Downloaded newer image for overture/dms:0.15.1 docker: Error response from daemon: attaching to network failed, make sure your network options are correct and check manager logs: context deadline exceeded.

Cause:

This may be caused by installing Docker in a non-standard way, not following the official installation instructions from the Docker documentation site.

For example, this installation using the snapd package manager, instead of the Docker site itself, causes the issue:

shell

Copy

$ sudo groupadd docker
$ sudo usermod -aG docker $USER
$ sudo reboot
$ curl https://raw.githubusercontent.com/overture-stack/dms/1.0.0/src/main/bin/dms-docker > dms
$ chmod +x dms
$ docker swarm init
$ dms -h

Status: Downloaded newer image for overture/dms:0.15.1 docker: Error response from daemon: attaching to network failed, make sure your network options are correct and check manager logs: context deadline exceeded.

Solution:

Make sure to install Docker using installation instructions directly from the Docker documentation site.

OAUTH Error Pages Not Displaying

Problem:

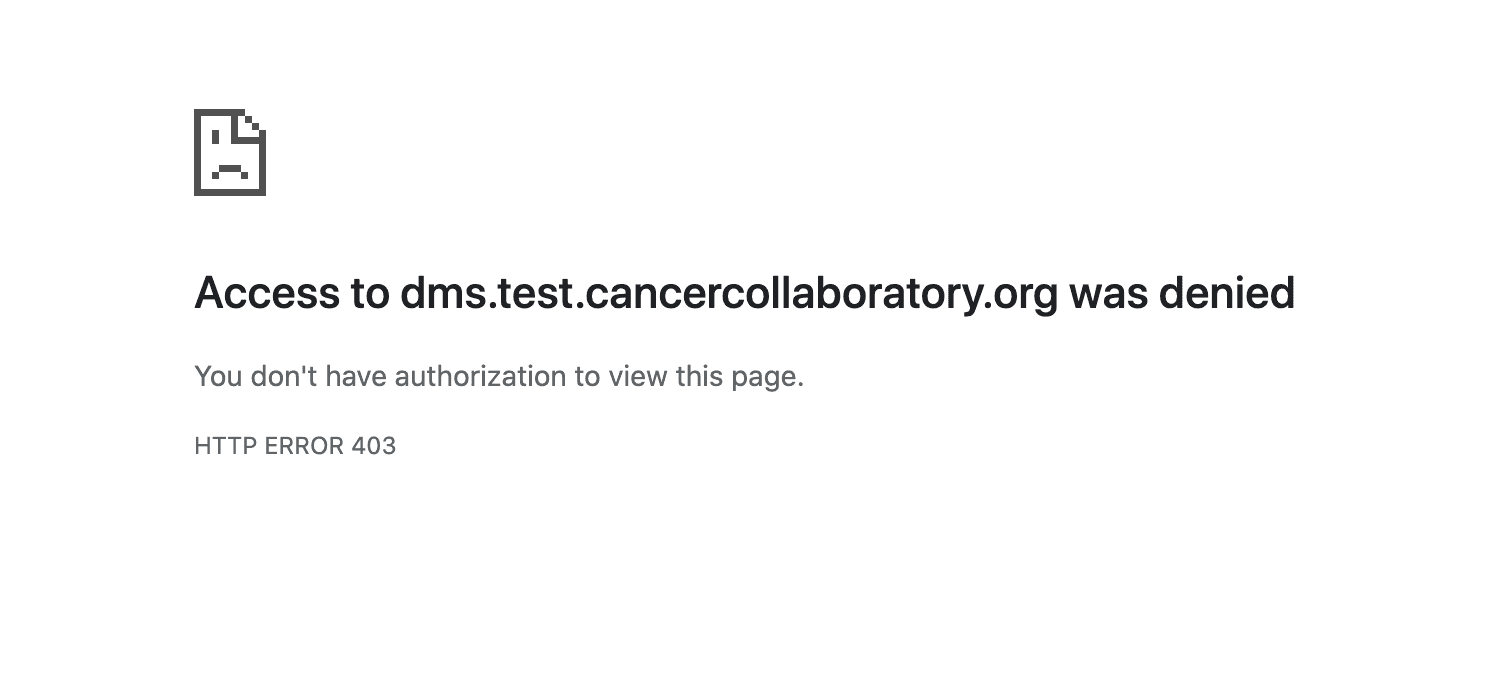

When an OAUTH authentication error occurs, a generic HTTP error page (e.g. 403) is shown, instead of the proper descriptive error page. For example, when a user's email address is not found, when a user has denied Ego access to their profile, etc. The generic error page is not informative and is not the correct one to display:

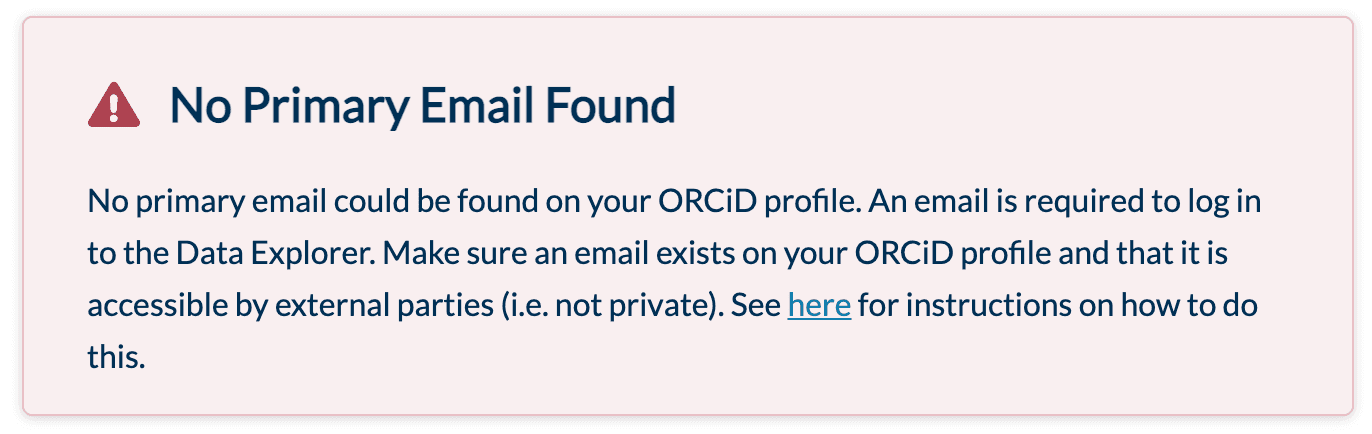

The correct error message should be stylized and include the type of error that occurred, a description of why it occurred, and a suggestion on how it can be rectified. For example:

Cause:

The dms application's ERROR REDIRECT URI has not been configured in Ego UI.

Solution:

Add the correct ERROR REDIRECT URI to the dms application in Ego UI.

1. Log into Ego UI by going to:

Where:

• <port> is the port on which you will deploy the DMS Gateway in local mode
• <myDomain> is the registered domain you configured for the DMS Gateway (e.g. dms.test.cancercollaboratory.org)

2. From the left navigation, click Applications and verify that the dms application has been created.

3. Click Edit on the dms application and in the ERROR REDIRECT URI field, enter:

Where:

• <port> is the port on which you will deploy the DMS Gateway in local mode
• <myDomain> is the registered domain you configured for the DMS Gateway (e.g. dms.test.cancercollaboratory.org)

This ensures that when OAUTH errors occurs, the DMS UI (Data Portal) is routed to the correct error page to display to the end user.

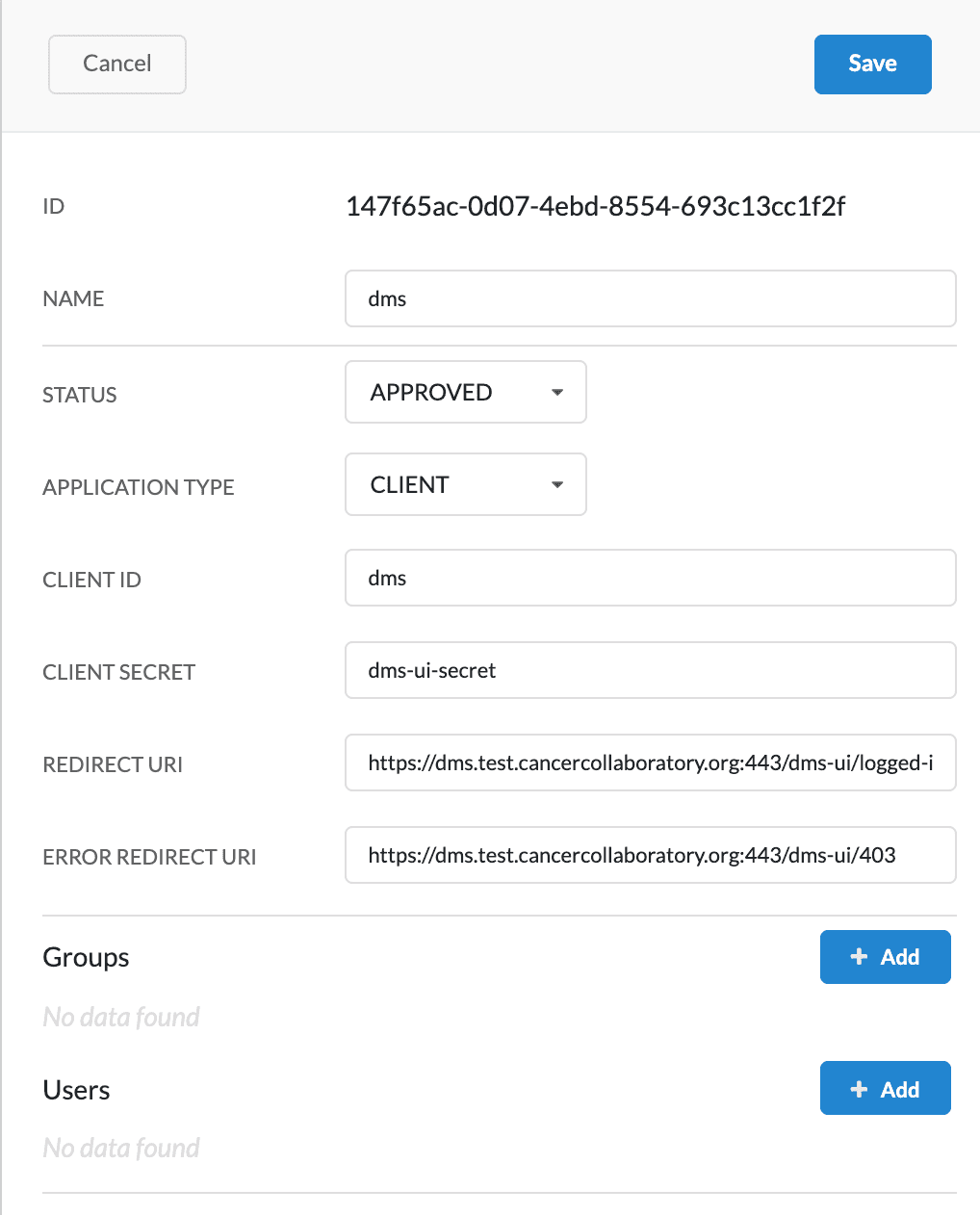

4. Click Save. Here is an example of the resulting application changes:

Omitting Bearer Prefix When Using Swagger UI

Problem:

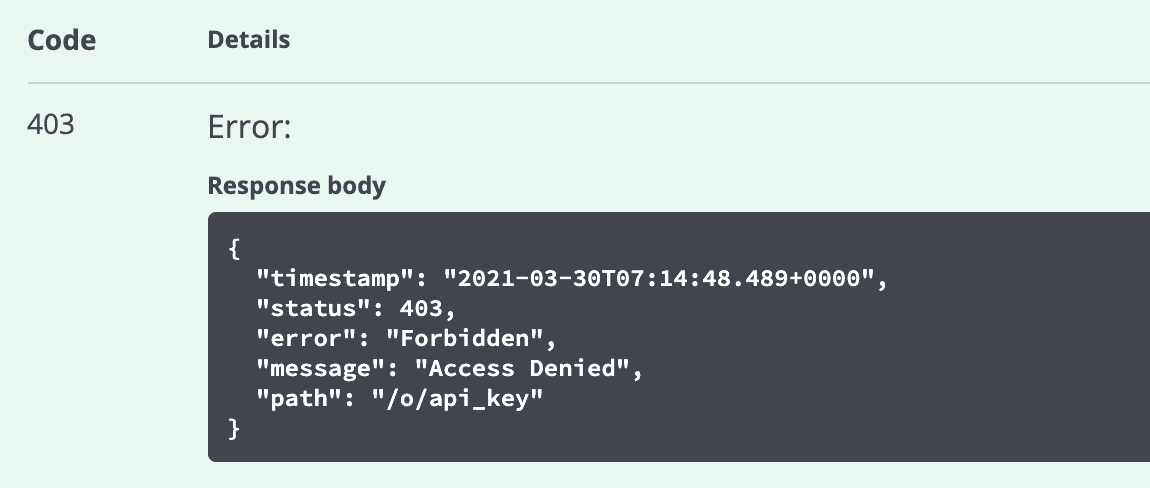

Even after authenticating with the Swagger UI for a given API service (e.g. Ego API, Song API, etc.), using the endpoints always results in a Forbidden Access error. For example:

Cause:

Make sure that, when authenticating with the Swagger UI, you have prefixed your credential (e.g. JWT, API Key, whichever applies in the given context) with the term Bearer and a whitespace. This is a common human/user error that occurs.

For example: Bearer abc123DEF456ghi789

Solution:

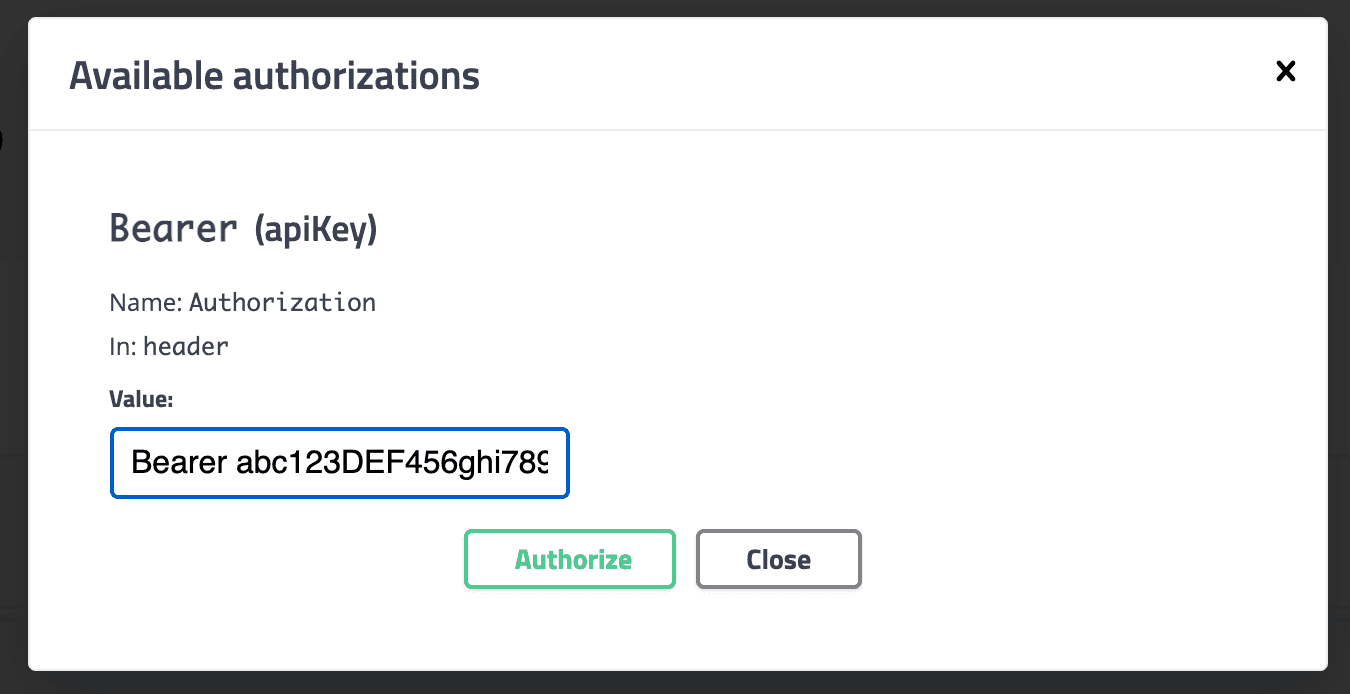

Make sure the Bearer prefix is added before your credential (e.g. JWT, API Key, whichever applies) when authenticating with the API. For example:

User Has No Permissions to Generate an API Token

Problem:

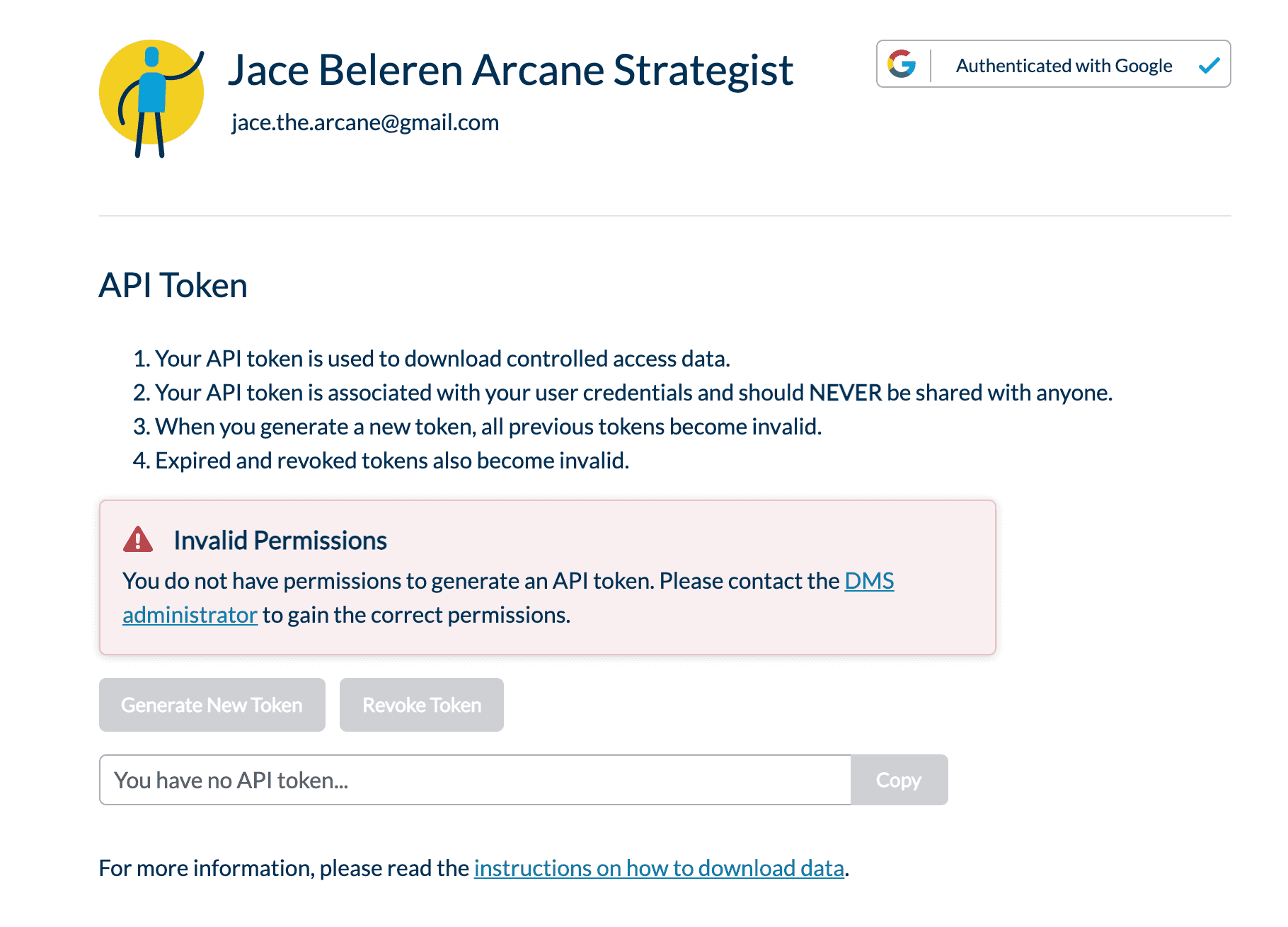

After logging into the Data Portal and trying to generate an API token from their profile page, an end user receives an error indicating they do not have permissions to generate an API token. For example:

Cause:

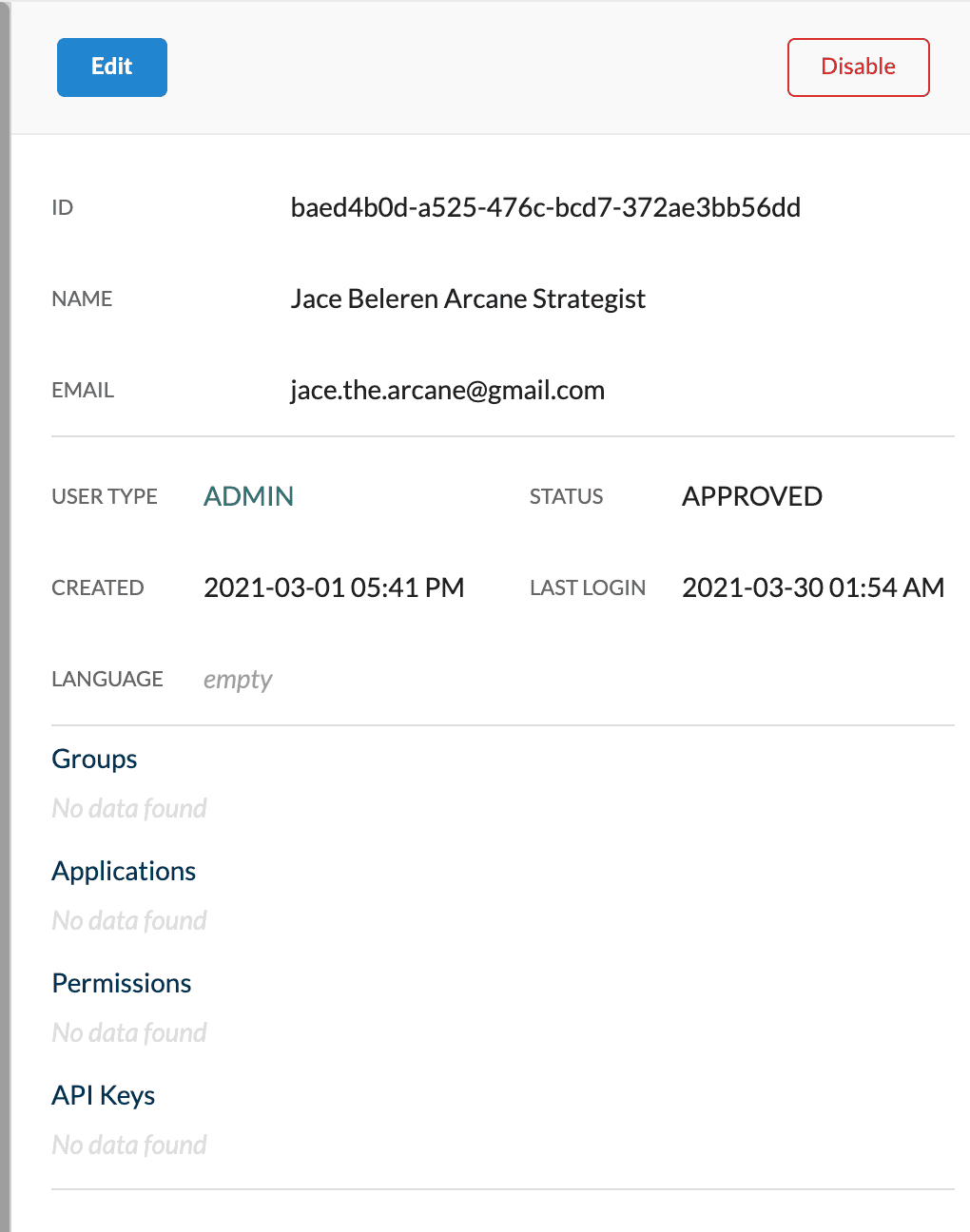

The user has not been assigned the correct permissions, or any permission at all, in Ego UI. For example, note that this user's profile Ego UI has empty Groups and empty Permissions:

Solution:

Make sure the user's permissions are not empty in Ego UI and assign then the correct permissions.

1. Log into Ego UI by going to:

Where:

• <port> is the port on which you will deploy the DMS Gateway in local mode
• <myDomain> is the registered domain you configured for the DMS Gateway (e.g. dms.test.cancercollaboratory.org)

2. From the left navigation, click Users and click Edit for the user in question.

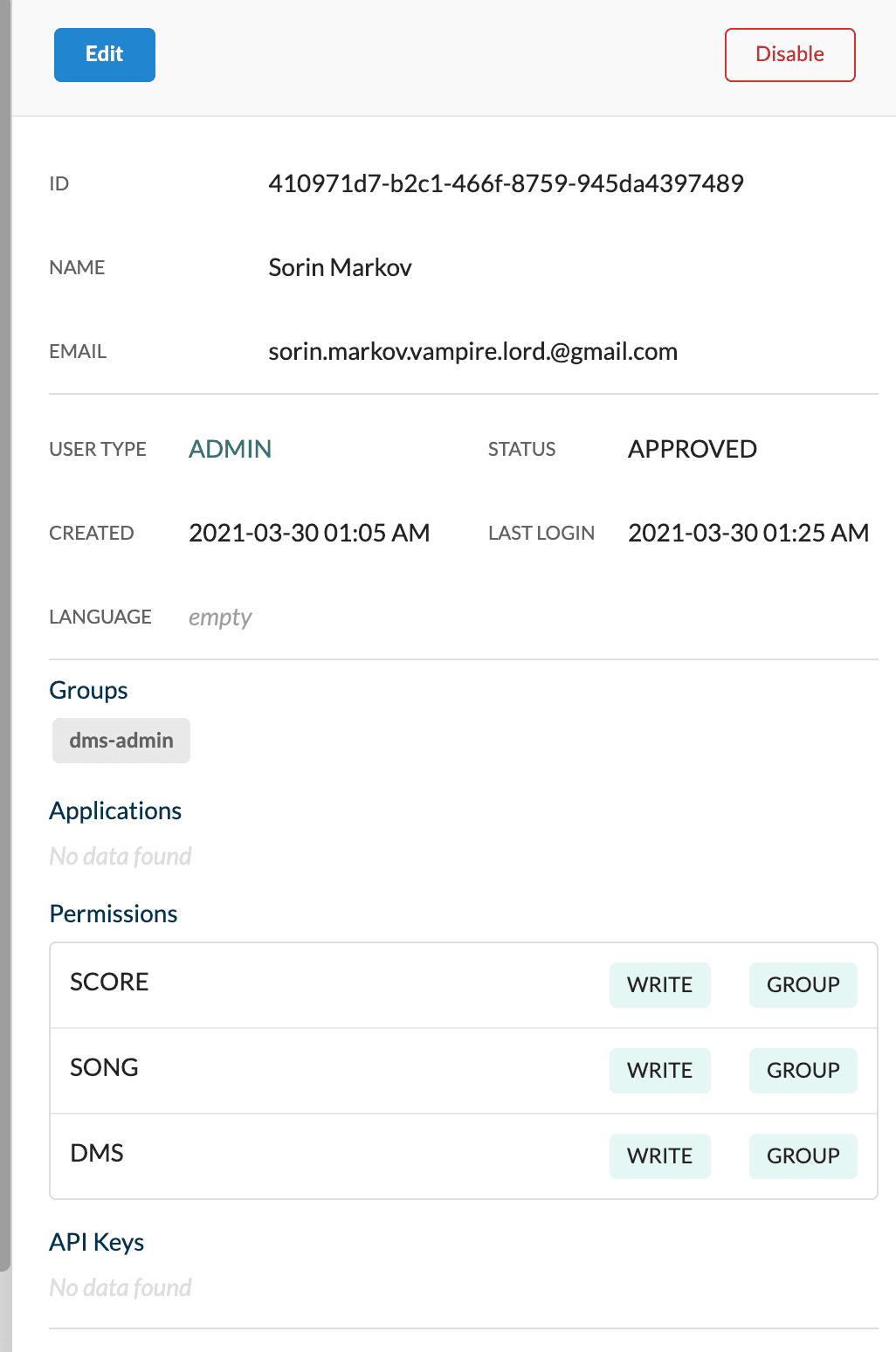

3. Under Groups, make sure the user is assigned a group with the correct permissions, OR under Permissions directly assign the necessary permissions. The permissions needed for their API key depends on functions or use cases the user needs to fulfill. For example, if the user needs to submit analyses via Song, then upload the data via score, they will need the SONG.WRITE and SCORE.WRITE permissions, respectively:
