Customizing your Data Portal

Getting Started

Introduction

Arranger simplifies GraphQL queries over Elasticsearch indices with it's front-end library of reusable search components. The primary configurable components for this guide are the left hand search facets and the central data table seen below.

Viewing Elasticsearch Documents

Indices in Elasticsearch are a collection of related documents with similar characteristics.

Elasticvue offers a convenient and user-friendly interface for managing and exploring your Elasticsearch data. With elasticvue, you can:

• Easily visualize and search through indexed documents.
• Quickly access and interact with JSON documents.
• Simplify the management and troubleshooting of Elasticsearch indices.

To install elasticvue, follow these steps:

1. Search for elasticvue in your browser's extension catalogue. E.g. Chrome Web Store, Firefox Add-ons, Microsoft Webstore.

2. Click on "Add to Chrome" (or "Add to Firefox") to install the extension.

3. Open elasticvue and enter your Elasticsearch URL. For the Overture Quickstart, this will be http://localhost:9200.

4. Select basic authentication and enter the default username elastic and password myelasticpassword.

Using ElasticVue

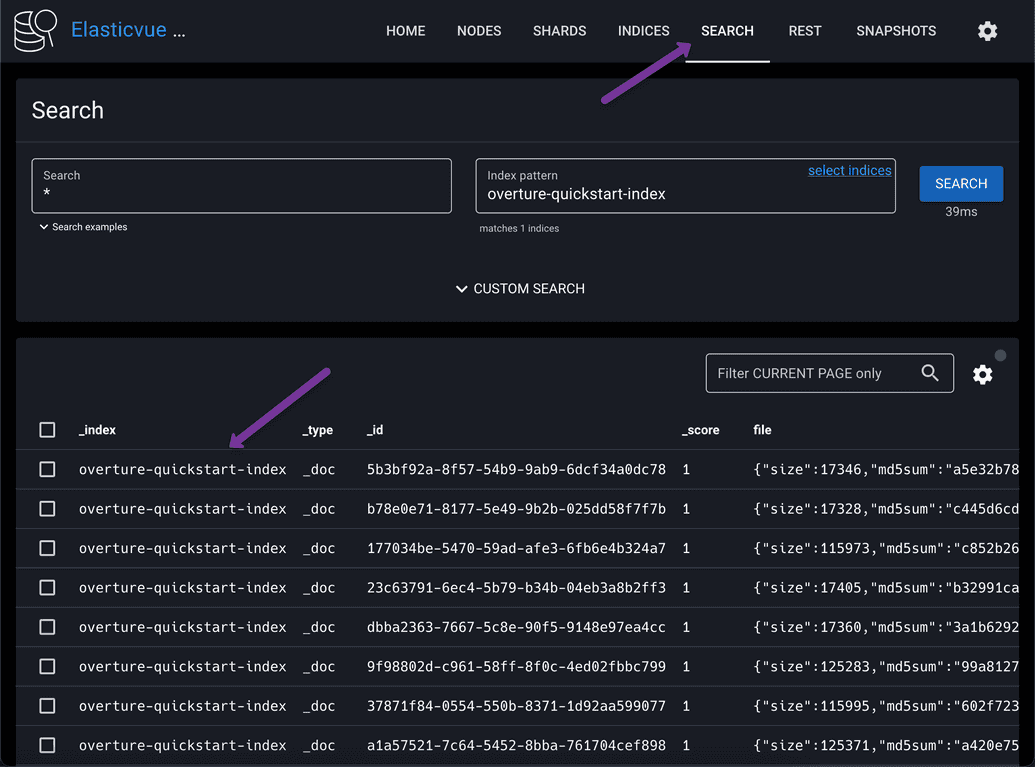

From the elasticvue dashboard's top navigation, select search.

This page displays all indexed Elasticsearch documents created by Maestro from published Song analyses and used by Arranger. Clicking any of the _index rows will give you a direct view of the JSON documents that populate the index.

Being able to easily view the JSON documents within your elastic search instance will be beneficial when configuring your Arranger configs.

Arranger Configurations

Base Configuration

The base.json file contains only two fields, documenType and index:

json

Copy

{
    "documentType": "file",
    "index": "overture-quickstart-index"
}

• The index field specifies the name of the Elasticsearch index, in this example the overture-quickstart-index

• documentType informs Arranger of the mapping type being used by Maestro, analysis or file centric

Extended Configuration

The extended.json configuration file defines all the fields and display names you wish to populate your front-end portal with. Below, we have provided a simplified list taken from our QuickStart extended.json configuration:

JSON

Copy

{
    "extended": [
      {
        "displayName": "Object Id",
        "fieldName": "object_id"
      },
    {
        "displayName": "Analysis Id",
        "fieldName": "analysis.analysis_id"
      },
    {
        "displayName": "Treatment Duration (Days)",
        "fieldName": "analysis.donor.primaryDiagnosis.treatment.treatmentDuration"
      }
  ]
}

ThedisplayName field outlines how you want your fields displayed on the front-end UI when used within the search facets and or table.

The fieldName values are written as represented within your Elasticsearch documents:

• Object ID can be found at the root of the Elasticsearch Documents and therefore is simply the fieldName shown here

• The Analysis ID is a nested element found inside the Analysis field, we denote nesting by adding a period . making the appropriate fieldName analysis.analysis_id

• By looking at the treatmentDuration field, we can see it is nested relatively deeper than our other three fields outlined above. The same rules, however apply, and by working backwards and adding a . for each nested element, we end up with analysis.donor.primaryDiagnosis.treatment.treatmentDuration

Table Configuration

The table.json file configures the columns displayed in the data table. These configurations specify which fields are shown, their visibility, and their sortability.

JSON

Copy

{
  "table": {
    "columns": [
      {
        "canChangeShow": true,
        "fieldName": "object_id",
        "show": false,
        "sortable": true
      },
      {
        "canChangeShow": true,
        "fieldName": "analysis.analysis_id",
        "show": false,
        "sortable": true
      },
      {
        "canChangeShow": true,
        "fieldName": "analysis.collaborator.name",
        "jsonPath": "$.analysis.collaborator.hits.edges[*].node.name",
        "query": "analysis { collaborator { hits { edges { node { name } } } } }",
        "show": true,
        "sortable": true
      }
    ]
  }
}

Basic fields

• canChangeShow is a boolean indicating if the user can toggle the visibility of the column, set this to true if you want users to have the option to show or hide this column using the columns dropdown menu. Set it to false if the visibility of this column should remain fixed.

• FieldName is the same fieldname as described above, these values are written as represented within your Elasticsearch documents

• show is a boolean indicating if the column is initially, by default, visible. Set this to true if you want the column to be visible when the table is first loaded. Set it to false if you want the column to be hidden by default.

• sortable is a boolean indicating if the column can be sorted. Set this to true if you want users to be able to sort the table by this column. Set it to false if sorting should not be allowed for this column.

jsonPath

The jsonPath field specifies the JSON path to extract nested data from Elasticsearch documents. This field defines the path to data nested within arrays.

For example, suppose we have an Elasticsearch document structured like this:

JSON

Copy

{
    "analysis": {
      "collaborator": [
        {
          "contactEmail": "susannorton@micr.ca",
          "name": "MICR"
        }
      ]
    }
}

If we want to extract the name field from the collaborator array within the analysis object, our jsonPath for this field would be:

json

Copy

$.analysis.collaborator.hits.edges[*].node.name

• $. designates the root of our elasticsearch documents
• analysis.collaborator is the key for our desired nested object within the root
• hits.edges[*].node specifies that we're accessing an array ([*] translates to "all elements" in the array)
• name specifies the desired field we want to extract from our Elasticsearch documents

query

The query field defines the GraphQL query needed to retrieve the nested data.

This follows a similar structure to our JSON path but is written in GraphQL syntax:

graphql

Copy

{
  analysis {
    collaborator {
      hits {
        edges {
          node {
            name
          }
        }
      }
    }
  }
}

When flattened, this matches the configuration shown in our example above:

JSON

Copy

"analysis { collaborator { hits { edges { node { name } } } } }",

Facet Configuration

The facets.json file defines how aggregations (also known as facets in Elasticsearch) are configured for data exploration and filtering.

JSON

Copy

{
  "facets": {
    "aggregations": [
      {
        "active": true,
        "fieldName": "file_type",
        "show": true
      },
      {
        "active": true,
        "fieldName": "analysis__collaborator__name",
        "show": true
      }

    ]
  }
}

• active indicates whether this aggregation is active or enabled (true)

• fieldName the field used for aggregation. This means Elasticsearch will aggregate data based on different values found in the defined field. For the file_type field, this translates into a facet with the options of filtering for aggregations of three file types: VCF, BAM and CRAM

• show indicates whether to display this aggregation in the user interface (true)
